Permadec GRP Deck Panels
Permadec Standard Panels are permanent GRP soffit formwork engineered for bridge decks and civil infrastructure. Designed to deliver structural efficiency, durability and geometric flexibility, they integrate seamlessly with cast in-situ concrete construction.
Permadec Standard Panels are engineered to suit the specific requirements of each project. Rib depth and spacing are adjusted to accommodate clear span and deck depth, with panels commonly designed for deck thicknesses up to 350 mm and adaptable to suit greater depths where required.
Bespoke configurations, including skewed geometries, can be developed to suit complex bridge layouts. Rib spacing is coordinated with reinforcement layouts to support efficient installation and minimise onsite clashes.
Panels are designed to accommodate construction stage loads and can provide a safe working platform.
Panels are lightweight to support safe handling. Where manual handling is not appropriate, factory-installed lifting points can be incorporated to facilitate controlled installation using suitable site machinery.
Panels may be trimmed onsite to suit final tolerances if required. Standard manufacturing tolerances are controlled to within ±3 mm.
Use our Panel Selector or contact Permadec to discuss your project requirements.
Product Features
Technical Specifications:
Permadec GRP permanent formwork panels are engineered to suit project-specific spans, deck thicknesses and construction loading requirements. Maximum panel lengths are governed by structural design capacity.
Technical Specifications
Permadec GRP permanent formwork panels are engineered to suit project-specific spans, deck thicknesses and construction loading requirements. Maximum panel lengths are governed by structural design capacity.

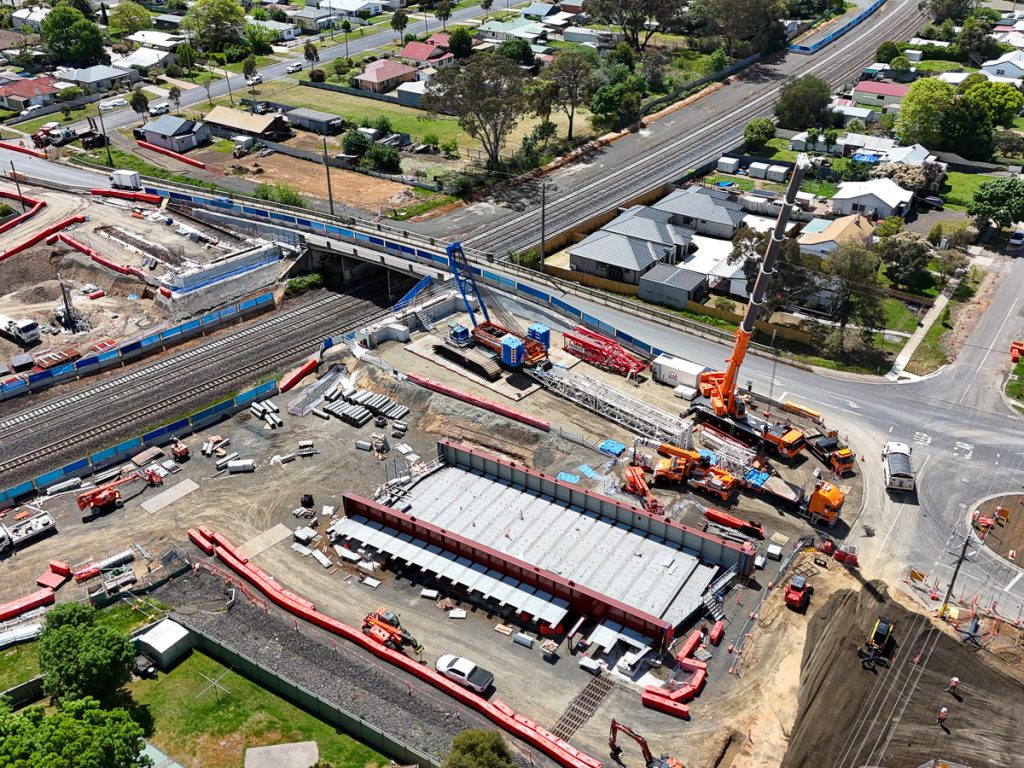

Standard Panel Projects
More Products
Permadec GRP Haunched Formwork Panels
Permadec can design and manufacture specially shaped haunched panels which can be used to reduce a deck thickness but also to avoid or suspend additional services beneath the soffit.
Permadec GRP Cantilever Panels
A major cost advantage is achieved when using our specially designed cantilever panels to avoid the need for propping off the side of a bridge or concrete deck structure.
GRP Composite Infill Formwork Panels
Combining a deck panel with a diaphragm panel, Permadec can offer the contractor a complete formwork solution for slab and side concrete pours.
Get in touch
For more information please contact one of our sales advisors on +61 2 9052 4975 email at sales@permadec.com.au or fill our this form.
"EMJ Plastics Limited were engaged to design, manufacture and deliver permanent formwork panels (Permadec) for a new road bridge in Newhaven, East Sussex. They were superb throughout the procurement, design and manufacturing stage. The Permadec system is extremely fast and easy to install especially when using the lifting frame to load out multiple panels at a time. The system seals really well requiring no additional protection when pouring the concrete deck above, even when working over a live railway. I would happily use this system and EMJ Plastics Ltd again."
Christopher Buckle, Senior Site Agent at BAM Nuttall Ltd
